Roofing Forming Machine

Name:
metal roofing machinery
Power:
5.5kw
Warranty:
12 months
Service:
Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Online Support, Overseas Service Center Available
Voltage:
220V/380V/480V
Weight:
around 6T
Delivery Time:
50 days
Place of Origin:
China
Control System:
PLC automatic
Dimension(l*w*h):
5000mm*1500mm*1500mm
Equipment Quotation Troubleshooting

PRODUCTS

Hot products

Tel:+86 13630833762

E-mail:dlymetalroofingmm@outlook.com

Product details description

1250mm Automatic Steel Roofing Forming Machine With Hydraulic Cutting



1. Description of Roofing Forming Machine



Our aims to be your ‘one-stop shop’ for all your rollforming needs, allowing our customers to save time and money when purchasing a rollformer. Along with our complete panel lines, we specialize in custom trim profiles along with all the needed accessories to complete your metal panel needs.



2. Specifications of Roofing Forming Machine



Suitable materialPPGI/Aluminium sheet/galvanized sheet/various sheet plates
Thickness of coil sheet0.3-0.8mm
Coil width1000mm
Effective width768mm
Material of main frame400H steel
Diameter of Soild shaft70mm, high grade 45# steel
Roller

High grade 45# steel, quenched and tempered treatment, hard chrome plated 0.05-0.07mm

Thickness of middle plate16mm, 45# steel plate
Forming roller station20 rows
Drive typeBy chain(1.0 inch), link bearing model 6210
Power of main motor5.5 kw, Lichao of Shanghai
Sidewall connection bar25mm, zinc plated
Forming speedAbout 12-18m/min
Hydraulic pump station5.5kw, 40# hydraulic oil
PLCDELTA(TAIWAN)/Mitsubishi
Material of razor bladesCr 12, quenching 58-62°C
Frequency converter

It has the advantage of slowing down before cutting,to ensure the length accuracy ±1mm, far better than industrial standard ±3mm.

SwitchCHNT
Frequency changerSAJ


3. Service of Our Roofing Forming Machine

  • Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

  •  Delivery: 40-60 working days after receipt of advance payment

  • Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 100USD/day.

  • Warranty: 12 months limited warranty

  • During warranty: parts are free but buyer pay for the shipping fee.

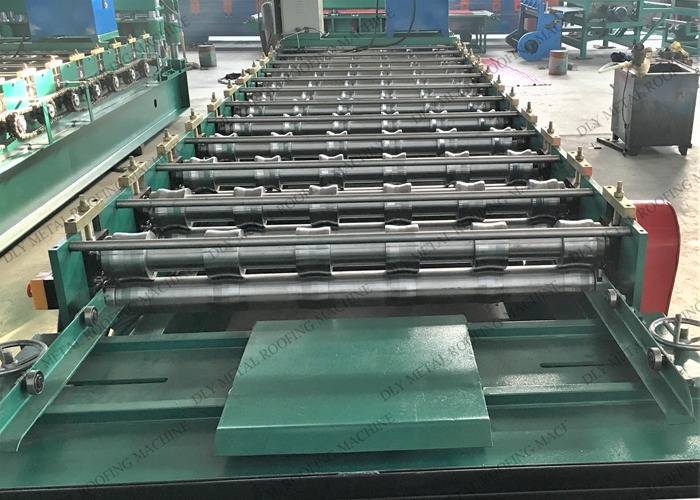

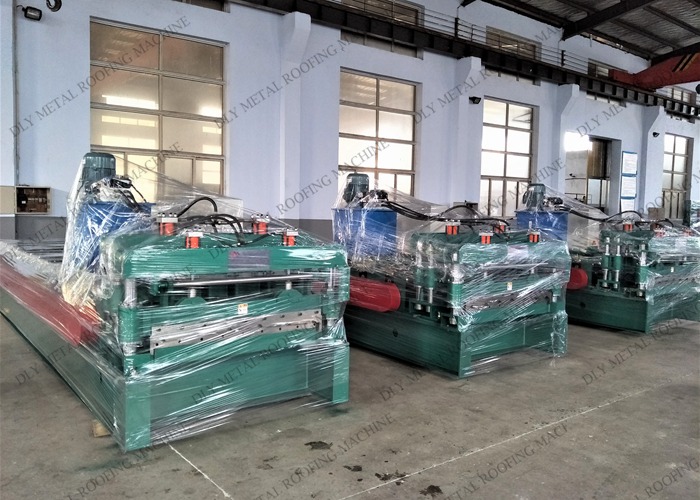

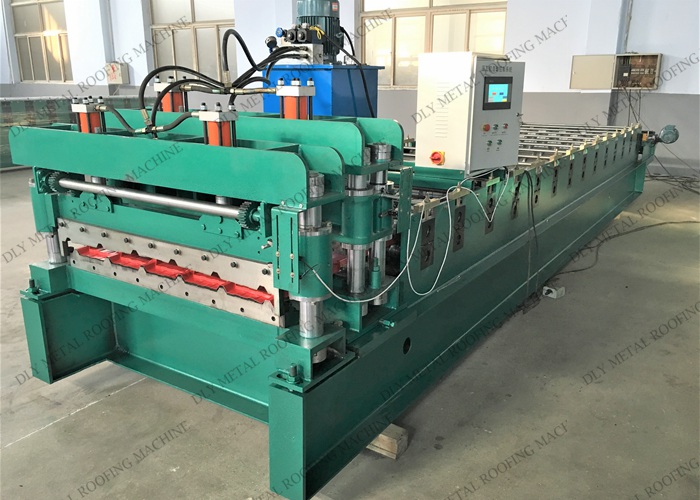

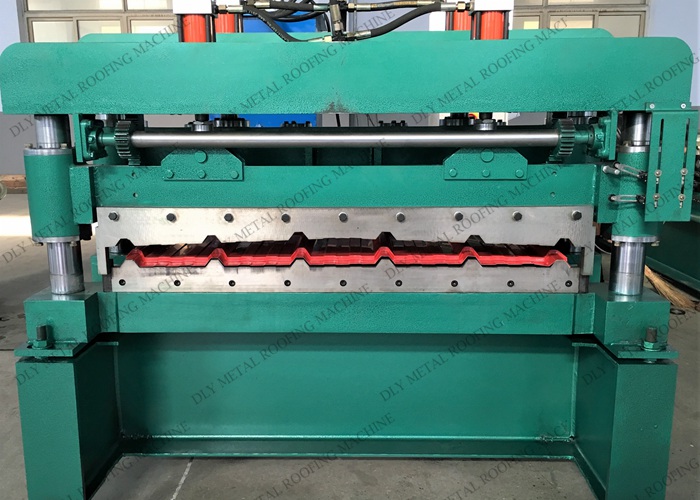

4. Details of Our Roofing Forming Machine
